Home >>   Products >>  Implements

Mounted Disc Harrow - Plain

Specifications (in mm) Mounted Disc 12-22 Mounted Disc 14-22
Overall Length 2005 2050
Overall Width 1482 1755
Overall Height 1237 1315
No. of Disc. 12 14
Disc Dia. 22 inch 22 inch
Total Width (Approx./Kg) 380 410

Mounted Disc Harrow - Cut

Specifications (in mm) Mounted Disc 12-22 Mounted Disc 14-22
Overall Length 2005 2050
Overall Width 1482 1755
Overall Height 1237 1315
No. of Didc Plain 6 7
Cut 6 7
Disc Dia. 22 inch 22 inch
Total Width (Approx./Kg) 380 410

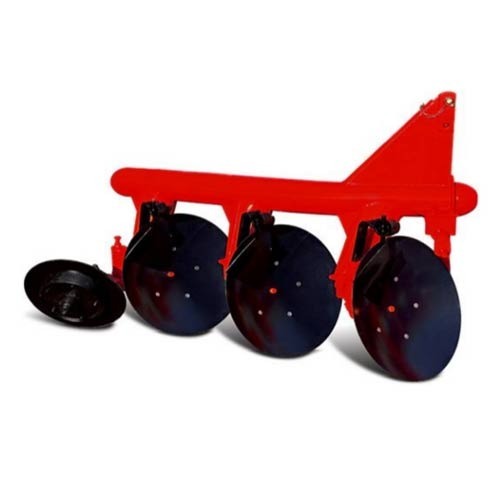

Disc Plough

Specifications (in mm) Disc Plough 2-26 Disc Plough 3-26
Overall Length 1605 1605
Overall Width 1320 1320
Overall Height 1275 1275
No. of Bottoms 02 03
Disc Dia. 26 inch 26 inch
Unit of Cut 250 250
Total Weight (Approx. / Kg.) 335 387

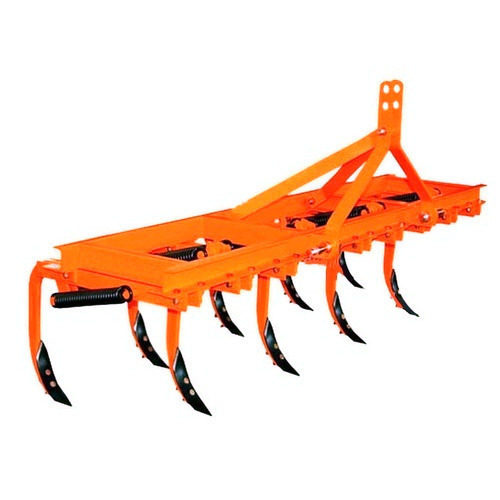

Spring Loaded Cultivator

Specifications (in mm) SL 09 SL 11 HST 09 HST 11
Overall Length 2155 2615 2005 2455
Overall Width 845 845 875 875
Overall Height 985 985 1135 1135
Under Frame Clearance 485 485 555 555
Front & Rear Clearance 445 445 360 360
Total Weight (Approx./Kg) 196 242 268 325
